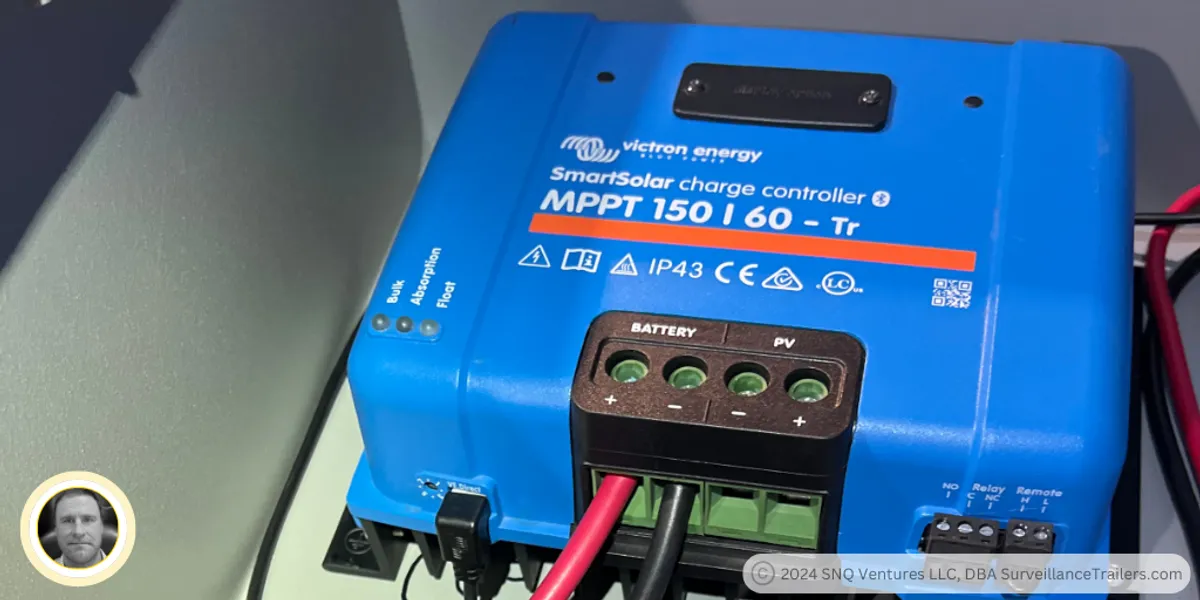

How to size a Victron solar charge controller
- Lee Stauss
- Power
- 30 Jun, 2024
Sizing a Victron solar charge controller correctly is crucial for the efficiency and longevity of your solar power system. This guide will walk you through the key considerations and steps involved in selecting the right Victron solar charge controller for your needs, ensuring optimal performance and future scalability.
Key Takeaways
- Understanding the different models and key features of Victron solar charge controllers is essential for making an informed decision.
- Properly calculating your solar array size and matching it to the appropriate charge controller can prevent overloading and underutilization.
- Choosing the right battery bank voltage (12V, 24V, 36V, or 48V) impacts the overall efficiency and compatibility of your system.
- Determining the correct charge controller amperage involves understanding the maximum output and ensuring it aligns with your solar array’s capacity.
- Utilizing advanced features like the Victron Bluetooth app and VE.Smart Networking can enhance the customization and monitoring of your solar power system.
Understanding Victron Solar Charge Controllers
Victron Energy started in the marine off-grid power systems market but has since expanded globally. They are renowned for their high-quality off-grid power control products. When selecting a Victron charge controller, it’s crucial to choose the right type for your power source. Batteries can be charged from almost any electrical source, but the power needs to be properly adjusted to charge correctly. Here are the basics of the different varieties.
Calculating Your Solar Array Size
Sizing your solar array is a crucial step in setting up your solar power system. It ensures that your system can meet your energy needs efficiently and effectively. Let’s break it down into two main considerations: matching your solar panels to your charge controllers and planning for future expansion.
Choosing the Right Battery Bank Voltage
When setting up your solar power system, selecting the correct battery bank voltage is crucial. This decision impacts not only the efficiency of your system but also its overall performance and longevity. Let’s break down the options and their implications.
12V, 24V, 36V, and 48V Options
Choosing between 12V, 24V, 36V, and 48V battery banks depends on your specific needs and the scale of your solar setup. Here’s a quick comparison:
| Voltage | Typical Use Case | Pros | Cons |
|---|---|---|---|
| 12V | Small systems (RVs, boats) | Simple setup, widely available components | Less efficient for larger systems |
| 24V | Medium systems (small homes) | Better efficiency, manageable size | Requires more components than 12V |
| 36V | Specialized systems | Higher efficiency, good for specific applications | Less common, harder to find components |
| 48V | Large systems (homes, businesses) | Most efficient, supports large power needs | More complex setup, higher initial cost |
Impact on System Efficiency
The voltage of your battery bank directly affects the efficiency of your solar power system. Higher voltages, like 48V, reduce the current for the same power output, which minimizes energy loss due to resistance in the wires. This is particularly important for larger systems where efficiency gains can lead to significant cost savings over time.
For optimal performance, always consider the temperature range your batteries will operate in, as extreme temperatures can affect efficiency and lifespan.
Additionally, higher voltage systems can handle more power, making them ideal for extensive setups. However, they also require more sophisticated components and careful planning to ensure safety and compatibility.
In summary, while a 12V system might be perfect for a small RV, a 48V system is often the best choice for a home or business due to its superior efficiency and capacity. Always tailor your choice to your specific needs and future expansion plans.
Determining the Appropriate Charge Controller Amperage
Choosing the right amperage for your Victron solar charge controller is crucial for the efficiency and safety of your solar power system. It’s all about balance—you don’t want to overload your controller, but you also don’t want to underutilize it.
Understanding Maximum Output
First, you need to understand the maximum output of your solar array. For instance, if you have a 380W solar array and a 12V battery bank, you can calculate the current as follows:
380W / 12V = 31.67AIn this case, you would need a charge controller that can handle at least 32A. Always round up to ensure you have a bit of headroom.
Avoiding Overloading and Underutilization
Overloading your charge controller can lead to inefficiencies and potential damage. For example, if your solar array produces 28A but your charge controller is only rated for 20A, you’ll be wasting energy. On the flip side, if your charge controller is too large, you might not be using it to its full potential, which can also be inefficient.
It’s essential to match your solar array’s output with the charge controller’s capacity to optimize charging time and system performance.
Here’s a quick reference table to help you choose the right charge controller based on your solar array and battery bank voltage:
| Solar Array (W) | Battery Bank (V) | Required Amperage (A) |
|---|---|---|
| 380W | 12V | 32A |
| 520W | 24V | 22A |
| 1040W | 48V | 22A |
By following these guidelines, you can ensure that your Victron solar charge controller is appropriately sized for your system, leading to optimal performance and longevity.
Programming and Customizing Your Charge Controller
Alright, let’s dive into the fun part—programming and customizing your Victron solar charge controller. This is where you get to make the system truly yours, tailored to your specific needs and preferences. Victron MPPT charge controllers offer fully programmable functionality, which means you can set them up to match your unique battery requirements. Whether you’re using a 12V, 24V, or even a 48V battery bank, Victron has got you covered.
Using the Victron Bluetooth App
One of the coolest features of Victron charge controllers is the built-in Bluetooth capability. This allows you to monitor and update your controller via your smartphone or other devices. No more fiddling with tiny buttons and cryptic screens! Simply download the VictronConnect app, pair it with your controller, and you’re good to go. You can view real-time data, update firmware, and even set custom charge profiles—all from the palm of your hand.
Setting Up Custom Charge Profiles
If you’re using specialized batteries like LiFePO4 or have a custom-built battery setup, you’ll appreciate the ability to create custom charge profiles. This ensures that your batteries are charged optimally, extending their cycle life and improving overall system efficiency. The app allows you to tweak various parameters such as absorption voltage, float voltage, and charge current. Here’s a quick rundown of what you can adjust:
- Absorption Voltage: The voltage at which the battery is charged at a constant rate.
- Float Voltage: The voltage maintained to keep the battery fully charged.
- Charge Current: The amount of current supplied to the battery during charging.
Customizing your charge controller settings can significantly enhance the performance and longevity of your battery bank. Take the time to understand your battery’s requirements and adjust the settings accordingly.
And there you have it! With a bit of tweaking and the right settings, your Victron charge controller will be running like a well-oiled machine, perfectly suited to your solar power system.
Advanced Features and Accessories
When it comes to Victron solar charge controllers, there are some advanced features and accessories that can really enhance your system’s performance and user experience. Let’s dive into a couple of these standout features and how they can benefit you.
Common Mistakes to Avoid
When setting up your Victron solar charge controller, there are a few common pitfalls that can trip you up. Let’s dive into some of these mistakes and how to avoid them.
Incorrect Sizing Issues
One of the most frequent errors is incorrectly sizing your charge controller. If your controller is too small, it won’t handle the power from your solar array, leading to inefficiency. On the flip side, an oversized controller can cause issues, especially with lead-acid batteries, which might boil or even explode. Lithium batteries, like Battle Born’s, may not charge properly and could be damaged. Always ensure your charge controller matches your solar array’s output and your battery bank’s capacity.
Improper Wiring Practices
Wiring mistakes can lead to significant problems, including system failures and safety hazards. Here are some tips to avoid these issues:
- Keep wires short: Long wires can lead to voltage drops, reducing system efficiency.
- Use appropriate wire gauges: Ensure your wires can handle the current without overheating.
- Secure connections: Loose connections can cause arcing and potential fire hazards.
Remember, a well-wired system is not just about performance but also safety.
By avoiding these common mistakes, you’ll ensure your Victron solar charge controller operates efficiently and safely, giving you peace of mind and a reliable power system.
Conclusion
Sizing a Victron solar charge controller might seem daunting at first, but with the right information, it becomes a manageable task. By understanding your system’s voltage and current requirements, as well as the specific needs of your battery bank, you can select the perfect controller to optimize your solar power setup. Whether you’re working with a small off-grid system or a large, complex array, Victron offers a range of high-quality controllers to meet your needs. Remember, the key is to ensure that your controller can handle the maximum input from your solar panels and provide the appropriate output to your batteries. With careful planning and consideration, you can harness the full potential of your solar energy system and enjoy reliable, efficient power for years to come.
Frequently Asked Questions
What are the different models of Victron solar charge controllers available?
Victron offers a range of solar charge controllers, including the BlueSolar and SmartSolar series. These models vary in terms of maximum input voltage, output amperage, and additional features such as Bluetooth connectivity.
How do I calculate the size of my solar array for a Victron charge controller?
To calculate the size of your solar array, you need to match the total wattage of your solar panels to the maximum input capacity of the Victron charge controller. For example, a 45 Amp controller can handle up to 650 watts at 12 volts, 1300 watts at 24 volts, and 2600 watts at 48 volts.
What battery bank voltages are compatible with Victron charge controllers?
Victron charge controllers are compatible with 12V, 24V, 36V, and 48V battery bank systems. The choice of voltage impacts system efficiency and should be matched to your specific energy needs.
How do I determine the appropriate amperage for my charge controller?
The appropriate amperage for your charge controller depends on the maximum output of your solar array and the energy requirements of your battery bank. It’s crucial to avoid overloading the controller and ensure it is not underutilized.
Can I use multiple Victron charge controllers in one system?
Yes, you can use multiple Victron charge controllers in one system. Some models can communicate with each other via Bluetooth or VE.can ports to synchronize charging and improve efficiency.
How do I program custom charge profiles on a Victron charge controller?
Custom charge profiles can be programmed using the Victron Bluetooth app. This allows you to set specific charging parameters tailored to different battery chemistries, including custom-built lithium batteries.
